A2Q05 Recessed positively illuminated cut-to-length strip light.

Product Description.
1) Unique design, oblique light, any cut length;
2) Installation of the molded use of shrapnel fixed, simple and reliable;
3) Length can be customized, suitable for a variety of home decorative lighting occasions.

Product Parameter

Dimensions and Packaging

Size: (customized size)*14*10.3mm

Packing: PE sleeve

Accessory

Installation
Step 1: Cutting
1)Cut the profile, according to the cabinet demand, cut the aluminum to the required size, please ensure that the saw blade of the cutting equipment is sharp, there is a residual part of the copper piece of the light strip after cutting, please manually remove to prevent short circuit.
2)Label the wires

Step 2: Assemble the lamps and lanterns, please do not operate with electricity when installing and using the lamps and lanterns.

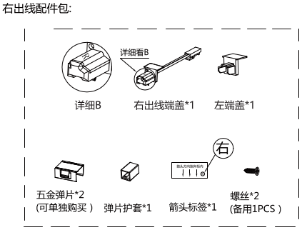

1. For the right outlet, select (Right Outlet Kit) to insert the pick-up end cap into the right side of the profile, and use the screws to fix the pick-up end cap.
2. Insert the left end cap (L) into the left side of the profile.
3. Snap the tabs onto the back of the profile for the next step in the installation.

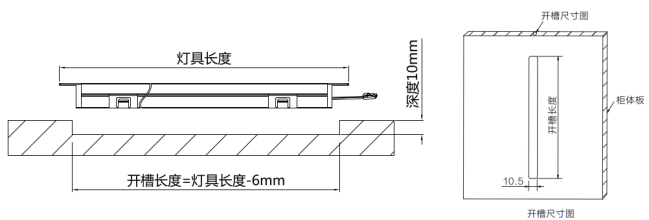

Step 3: Open slots or short slots in the laminate with the following dimensions.

1.Safety instructions
1)For indoor use only
2)Please check the wire, transformer and all other parts regularly for damage, if any part is damaged, the product should not be used.
3)When installing and using the lamp, please strictly observe this instruction manual and keep it for future use.
4)The light source of this product is a non-replaceable light-emitting diode.
5) Please do not install the lamp in the place where water drips.

2.Maintenance
1)The external cords of this fixture cannot be replaced; if the cords are damaged, the fixture should be discarded for further use, different mounting surface materials must be used for different mounting hardware.

3.Cleaning and Maintenance
Please use a dry rag to clean, the use of strong detergent is strictly prohibited.
